ORION™ 900 HX Non-Linear Junction Detector

ORION™ 900 HX Non-Linear Junction Detector

Research Electronics International, LLC (REI) is one of the world’s leading manufacturers of Electronic Detection and Testing Equipment for Security Applications.

Based in Cookeville, Tennessee, USA, REI specializes in Radio Frequency (RF) Detectors, Non-Linear Junction Detectors (NLJDs,) Telephone & Line Inspection Equipment, Audio Security Equipment (including Acoustic Noise Generators,) Video Inspection and Physical Inspection Equipment to locate Electronic Bugs or Eavesdropping Devices.

CSSPakistan in proud association with REI LLC brings you ORION™ 900 HX Non-Linear Junction Detector.

Locate Hidden Electronics

The ORION 900 HX Non-Linear Junction Detector (NLJD) detects electronic semi-conductor components through dense materials such as bricks, concrete, and soil. The ORION 900 HX NLJD is made to detect and locate hidden cameras, microphones, and other electronic devices regardless of whether the surveillance device is radiating, hard wired, or turned off.

Efficiency: longer 900 MHz wavelength does better at detecting older, less refined circuitry and also penetrating building and construction materials

Usability: touch screen display provides fingertip control of operation settings and graphic displays which can be captured and saved for historical reference and reporting

Portability: lightweight design is under four pounds and no tools are required with the integrated telescoping pole

Product Video

(Note: Above Video is Applicable Both to ORION™ 900 HX & ORION™ HX Deluxe Non-Linear Junction Detectors.)

ORION™ 900 HX NLJ Detector Pics

Technical Specifications

1. Features

  • Digitally modulated spread spectrum transmit signal provides increased detection range and interference rejection
  • A 1.25 MHz-wide transmit signal increases detection sensitivity
  • Histogram graph displays continuous history of harmonic response and power adjustment
  • Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
  • The adjustable, high gain provides increased detection range for the same power
  •  A 2nd & 3rd harmonic response correlated to Tx improves detection and minimizes interference
  • Visible display, alert tones, and haptic (vibration) alert can be selected to alert on detection
  • Telescopic pole extension allows a user to search ceilings and walls
  • Synthesized transceiver provides frequency stability and agility to automatically search for quiet operating frequencies

2. Applications

  • Technical Surveillance Countermeasures (TSCM)
  • Counter Surveillance
  • Non-Linear Junction Detection
  • Locating Hidden Electronics
  • Locating Electronic Contraband
  • Intelligence Protection
  • Executive Protection
  • Eavesdropping Detection
  • Surveillance Equipment Detection
  • Electronic Surveillance Detection

Note: Orion 900 (Keypad Model) Also Available

3. Specifications


Transmit power*: 1.4 W EIRP; G model: 3.2 W EIRP
Power control: Manual or auto control
Frequency band: 905 – 925 MHz; G model: 840 – 960 MHz
Transmit channels: Manual or auto selection
Transmit modulation: Digital 1.25 MHz bandwidth
*G model available to entities, agencies, and persons not restricted by FCC/IC. Both power levels are CE marked for public safety and security. For commercial CE compliance, a lower power model is also available.


Simultaneous 2nd & 3rd harmonic receive
Digitally correlated
Frequency bands:

  • Second Harmonic: (1810 MHz – 1850 MHz); G model (1680 MHz – 1920 MHz)
  • Third Harmonic: (2715 MHz – 2775 MHz); G model (2520 MHz – 2880 MHz)

Sensitivity: -130 dBm for both harmonics


Handle-mounted touch screen controller display**
Antenna-mounted display

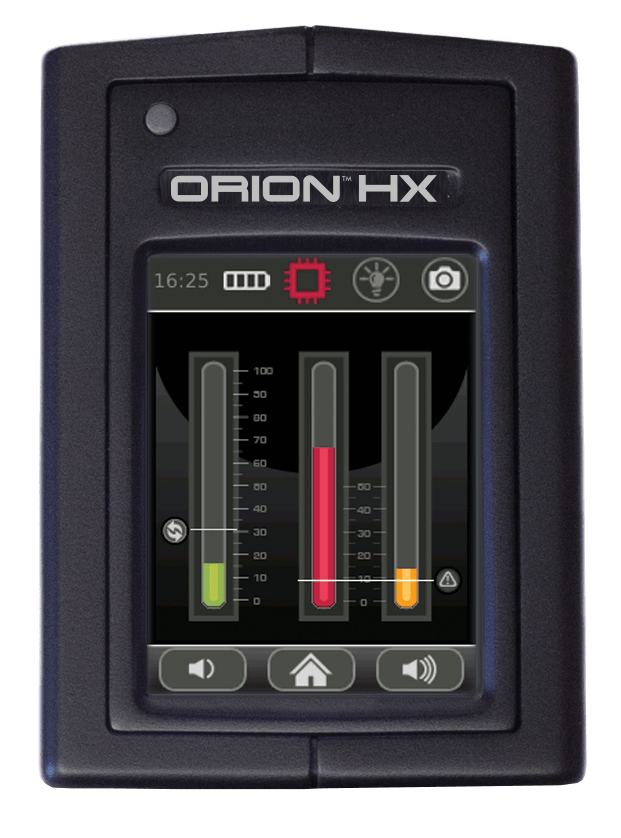

Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)Note: Orion 900 (Keypad Model) Also Available


Extension lengths: 16-51 in (40.6-129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION 900 HX dimensions: 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm)
Overall extended length: 58 in (147 cm)
ORION 900 HX weight with battery: 3.6 lbs (1.6 kg)
Case weight including ORION & accessories: 12.6 lbs (5.7 kg)


Input AC: 100-240 V, 50-60 Hz
Run time: >4 hours per battery (typical)
Charge time: 2.5 hours per battery
Batteries: Lithium ion rechargeable (2 included)
The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040, rated 11.25V, 2950mAh, 33.2Wh.


Operating temperature: -10 to 50°C
Battery charging temperature: 5 to 37°C
Storage temperature: -20 to 60°C
Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life.

5. Included Accessories

Lithium-ion Smart Battery Charger
The Lithium-ion Smart Battery Charger provides additional charging capabilities to the OSCOR Spectrum Analyzers, TALAN 3.0 Telephone and Line Analyzer, ORION Non-Linear Junction Detectors, & VPC 2.0 Video Pole Camera.

Lithium-ion Rechargeable Battery – 2950mAh
A 2950 milliampere hour lithium-ion battery for the following REI products: ORION Non-Linear Junction Detectors, VPC 2.0 Video Pole Camera, & the VPC 2.0 Deluxe.

If You're a Law Enforcer and Want to Find the Truth Stored in a Suspect's Brain, Don't Hesitate to Give Us a Call!

ORION™ 900 HX is One of The World’s Most Sensitive NLJ Handheld Detectors to Detect Older Less Refined Circuitry Through Dense Materials.

An Indispensable Handy Tool to Thwart Your Rival’s Eavesdropping Attempts.

Call Capital Services System now at +92 51 2110 525 or send us an email at: info@csspakistan.com to know more about ORION™ 900 HX.
