ORION™ HGO-4000 Non-Linear Junction Detector

Research Electronics International, LLC (REI) is one of the world’s leading manufacturers of Electronic Detection and Testing Equipment for Security Applications.

Based in Cookeville, Tennessee, USA, REI specializes in Radio Frequency (RF) Detectors, Non-Linear Junction Detectors (NLJDs,) Telephone & Line Inspection Equipment, Audio Security Equipment (including Acoustic Noise Generators,) Video Inspection and Physical Inspection Equipment to locate Electronic Bugs or Eavesdropping Devices.

CSSPakistan in proud association with REI LLC brings you ORION™ HGO-4000 Non-Linear Junction Detector.

Locate Listening Devices and Semiconductors

The ORION HGO-4000 is REI’s original high gain Non-Linear Junction Detector for special applications. The ORION HGO-4000 can locate listening devices and semiconductors in walls floors, ceilings, fixtures, furniture or containers and provides a user the capability to detect hidden electronic devices, regardless of whether the device is radiating, hard wired, or even turned off.

Efficiency: high transmit power for rapidly searching large areas and the circularly polarized antenna reduces search time and improves reliability

Usability: second and third harmonic operation includes advanced algorithms for minimizing false alarms as well as listening capability for each harmonic

Portability: balanced, ergonomic, lightweight design with no cables or bulky transceiver units to carry

Product Video

(Note: Above Video is Applicable Both to ORION™ HGO-4000 & ORION™ 2.4 Non-Linear Junction Detectors.)

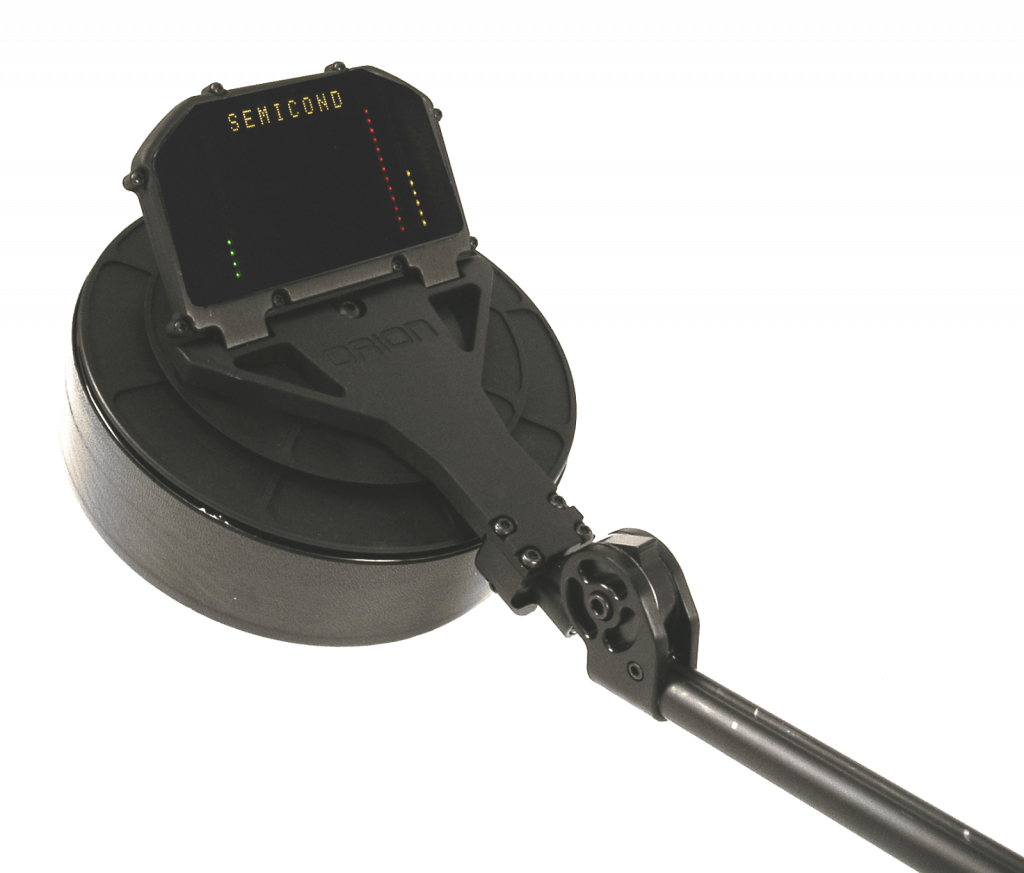

ORION™ HGO-4000 NLJ Detector Pics

Technical Specifications

1. Features

  • Second and third harmonic operation includes advanced algorithms for minimizing false alarms as well as listening capability for each harmonic
  • Dynamic power control for locating threats; automatic or manual control
  • Synthesized transceiver provides frequency stability and agility to automatically search for clean operating frequencies
  • Circular, polarized antenna removes risk of missing a threat due to incorrect antenna polarization
  • High transmit power for rapidly searching a large area
  • Standard camcorder battery with long run time and quick charge functions
  • Wireless headphones and graphic display for simultaneous audio & visual information

2. Specifications


Frequency bands: 840-915 MHz in 200 kHz steps
Transmit power: 30 milliwatts minimum to approximately 3 watts effective radiated power (ERP)
Power control: manual or auto control with 30 dB range


Frequency bands: second (1680-1830 MHz) or third (2520-2745 MHz) harmonic of transmit frequency
Sensitivity: -133 dBm for both harmonics
DSP S/W integration: programmable between 6 and 18 dB gain in sensitivity performance
Receiver bandwidth: 3 kHz


Extension lengths: 16–51 in (40.6–129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
Unit weight: 3.3 lbs (1.5 kg)
Unit weight with battery: 3.7 lbs. (1.7kg)
Case weight including unit and accessories: 12.8 lbs (5.8 kg)
Setup time (including power-up self-test): 25 seconds


Input AC: 100–240 V, 50–60 Hz
Run time: 3 hours per battery (typical)
Charge time: 1 hour per battery
Batteries: (2 incl.) 7.2 V NiMH

4. Included Accessories

There are currently no accessories associated with this product.

If You're a Law Enforcer and Want to Find the Truth Stored in a Suspect's Brain, Don't Hesitate to Give Us a Call!

ORION™ HGO-4000 is The World’s Most Sensitive NLJ Handheld Detector to Detect Hidden Electronics Specially Designed for Illicit Purposes.

An Indispensable Handy Tool in Any Capable Security Agency’s Arsenal.

Call Capital Services System now at +92 51 2110 525 or send us an email at: info@csspakistan.com to know more about ORION™ HGO-4000.
