Introducing MEFF M2-PRO Spectrum Analyzer
Advanced Counter-Drone Defense Solution
The HEWEI 3KW Intelligent Laser Anti-drone System represents cutting-edge directed energy technology for neutralizing unauthorized drone threats. This comprehensive system integrates high-energy laser technology, electronic information processing, advanced image recognition, and intelligent radar detection to achieve autonomous target recognition, high-precision tracking, and rapid laser-based neutralization of drones, balloons, birds, kites, and other “low-slow-small” airborne threats.
Designed for both mobile and fixed deployment, the system can be vehicle-mounted for tactical mobility or permanently installed on building rooftops for perimeter defense. The intelligent system provides complete automation from detection through engagement, ensuring rapid threat disposal while minimizing operator workload.
Key Features & Capabilities
High-Energy Laser System
- Laser Emission Power: ≥3KW
- Beam Quality: M² ≤1.5
- Main Aperture: 50mm
- Continuous Emission Time: ≥120 seconds
- Output Fiber Length: 4m
Precision Targeting & Engagement
- Maximum Tracking Distance: 600m (DJI Phantom-class targets)
- Effective Damage Distance: 100-400m
- Damage Time: 5-15 seconds from emission to target neutralization
- Target Tracking Accuracy: ≤15μrad (RMS)
- Maximum Tracking Speed: 60°/s
- Maximum Tracking Acceleration: 60°/s²
Intelligent Radar Detection System
- Maximum Detection Distance: 5km (0.01m² RCS targets)
- Minimum Detection Distance: 200m
- Maximum Recognition Distance: 2km
- Recognition Accuracy: ≥95% (drones, birds, balloons, aircraft)
- Radar Band: X-band
- Detection Coverage: Azimuth 0°-360°, Pitch 0°-30°
Advanced Target Recognition
- Deep learning-based intelligent identification
- 95% accuracy in complex environments
- Automatic discrimination between drones, birds, balloons, helicopters
- Micro-Doppler feature analysis
- Reduces false alarm rates significantly
- AI-enhanced threat classification
Comprehensive Coverage
- Azimuth Angle Range: -90° to +90°
- Pitch Angle Range: -10° to +55°
- 360° radar surveillance capability
- Sector scanning with pitch electric sweep
- Full hemispherical protection
Intelligent Automation
- Radar-guided target acquisition
- Automatic target recognition and classification
- Intelligent tracking with precision beam control
- Simple operator interface
- Real-time system status monitoring
- Laser on/off control
- Integrated video surveillance
Flexible Deployment
- Vehicle-mounted configuration
- Fixed rooftop installation
- Simple disassembly and transportation
- Rapid assembly and adjustment
- Quick deployment capability
- Portable tripod mounting system
System Architecture
Complete Integrated Solution:
- ATP (Acquisition, Tracking, Pointing) Unit
- Weight: ≤39kg
- Dimensions: 470mm × 643mm × 618mm
- Power Consumption: ≤1.0kW
- Power Supply: DC48V/20A (battery)
- High-Energy Laser
- Weight: ≤50kg
- Dimensions: 401mm × 606mm × 382-430mm
- Power Consumption: <10kW
- Power Supply: DC 80-130V (battery)
- Battery System
- Charging Voltage: AC 220V/5.7A
- Discharging Voltage: DC 80-130V / Stable 48V
- Maximum Charging Power: >10kW
- Nominal Capacitance: 4.5kWh
- Weight: ≤33kg
- Dimensions: 240mm × 260mm × 520mm
- Operating Temperature: -15°C to +60°C (discharge)
- Intelligent Radar Detection System
- Radar Weight: ≤35kg
- Radar Dimensions: 1020mm × 270mm × 410mm
- Processing Device Weight: ≤10kg
- Emission Power: ≤30W
- Average Power: ≤300W
- Protection Level: IP65
- Support Equipment
- Tripod Weight: ≤11.5kg
- Adjustable Height: 765mm – 1130mm
- Base Diameter: Ø1250mm – Ø2060mm
- Laptop: Configured per customer requirements
Intelligent Radar Detection System
System Composition
The intelligent radar detection system consists of two integrated components:
- Radar Unit (including tripod mounting system)
- X-band detection radar
- 360° azimuthal coverage
- Adjustable tripod for optimal positioning
- Weatherproof IP65 construction
- Intelligent Processing Device
- Deep learning neural network processor
- Micro-Doppler feature extraction
- Real-time target classification
- Data fusion and tracking algorithms

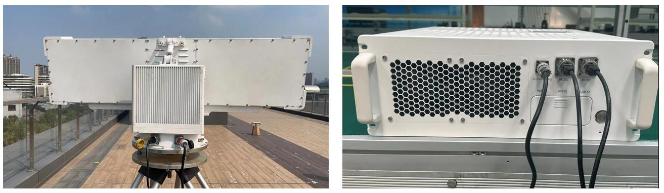

[Figure 1: Intelligent Radar Detection System Composition – showing radar unit deployed on tripod and intelligent processing device]
Advanced Deep Learning Technology
The intelligent radar perception system employs deep learning algorithms to achieve rapid, accurate identification of “low-slow-small” targets in complex environments including ground clutter, sea clutter, mountains, trees, and urban structures.
The system extracts micro-Doppler motion features from radar medium frequency signals to create distinctive signatures for different target types. These signatures reveal the unique movement patterns of rotating drone propellers versus flapping bird wings, enabling highly accurate discrimination.

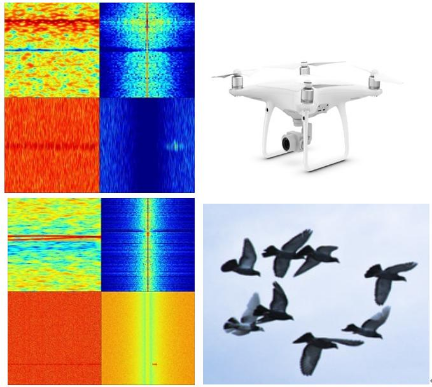

[Figure 2: Information Difference Between Bird and UAV in Radar Medium Frequency Signals – showing micro-Doppler signature comparison between drones and birds]
As illustrated in Figure 2, the micro-Doppler signatures clearly differentiate between drone targets (showing characteristic propeller rotation patterns) and birds (displaying wing flapping patterns). This fundamental difference in motion characteristics enables the deep neural network to achieve recognition accuracy exceeding 93% even in complex urban environments with multiple simultaneous targets.
Key Radar Capabilities:
- Target capacity: 200+ simultaneous tracks
- Data update rate: 6 seconds
- Maximum Ranging Distance: 500m (DJI Phantom-class)
- Minimum detectable speed: 2m/s radial velocity
- Positioning accuracy: Azimuth ≤0.6°, Pitch ≤0.6°, Distance ≤10m (1σ)
Intelligent Functions:
- Azimuthal circumferential sweep/sector + pitch electric sweep
- Deep learning target image recognition
- Micro-Doppler feature map analysis
- Real-time 3D position and velocity reporting
- Target flight path prediction
- Information exchange with overall control software
- Automatic startup self-test and fault diagnosis
- All-weather unattended operation capability
- Electromagnetic radiation protection for operators
Target Discrimination: The system extracts micro-Doppler motion features from radar signals to differentiate between:
- Rotary-wing drones (quadcopters, hexacopters)
- Fixed-wing drones
- Birds (various species and flight patterns)
- Balloons and airships
- Helicopters
- Civil aviation aircraft
Recognition accuracy exceeds 93% in complex urban environments with multiple simultaneous targets.
Real-World Performance Validation
The system has been extensively tested in complex urban environments to validate its intelligent recognition capabilities:

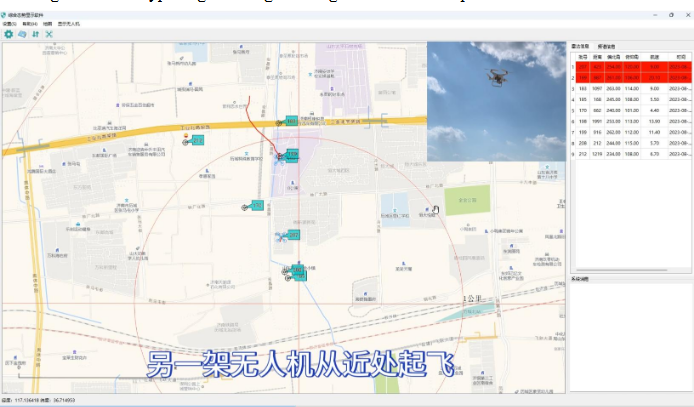

[Figure 3: Multi-type Target Intelligent Recognition Test in Complex Urban Environment – showing simultaneous detection and classification of drones and helicopters]
[Figure 4: Multi-type Drone Target Intelligent Recognition Test in Complex Urban Environment – showing recognition of multiple different drone models in flight]
These field tests demonstrate the system’s ability to simultaneously detect, track, and correctly classify multiple different target types in challenging real-world conditions with buildings, interference, and mixed target scenarios.
Technical Specifications Summary
Laser System
| Parameter | Specification |
|---|---|
| Laser Power | ≥3KW |
| Beam Quality | M² ≤1.5 |
| Main Aperture | 50mm |
| Maximum Tracking Distance | 600m |
| Damage Distance | 100-400m |
| Damage Time | 5-15 seconds |
| Continuous Operation | 120+ seconds |
| Tracking Accuracy | ≤15μrad (RMS) |
| Angular Coverage | Az: -90° to +90°, El: -10° to +55° |
Radar System
| Parameter | Specification |
|---|---|
| Radar Band | X-band |
| Maximum Detection Range | 5km (0.01m² RCS) |
| Maximum Recognition Range | 2km |
| Recognition Accuracy | ≥95% |
| Coverage | 360° azimuth, 0°-30° elevation |
| Target Capacity | 200+ units |
| Data Update | 6 seconds |
| Power Supply | AC 220V/50Hz |
| Weight | 35kg (radar) + 10kg (processor) |
| Protection | IP65 |
Environmental
| Parameter | Specification |
|---|---|
| Working Temperature | -30°C to +60°C |
| Storage Temperature | -50°C to +70°C |
| Humidity | 95%±3% (30°C, non-condensing) |
| Protection Level | IP65 |
Applications & Use Cases
Military & Defense
- Forward operating base protection
- Military installation perimeter defense
- Field deployment counter-drone operations
- Protected area air defense
- Convoy and asset protection
Critical Infrastructure
- Nuclear power plant security
- Oil and gas facility protection
- Dam and reservoir security
- Power station defense
- Strategic communication sites
Government & VIP Protection
- Government building security
- Embassy and consulate protection
- VIP event security
- Motorcade protection
- Restricted airspace enforcement
Airport & Aviation
- Airport approach path security
- Runway incursion prevention
- Terminal area protection
- Air traffic safety enhancement
- Unauthorized drone interdiction
Correctional Facilities
- Prison perimeter security
- Contraband interdiction
- Inmate communication prevention
- Facility surveillance enhancement
- Escape attempt prevention
Major Events
- Stadium and venue security
- Outdoor concert protection
- Political rally security
- International conference protection
- Festival and gathering safety
Border & Coastal
- Border surveillance and interdiction
- Coastal facility protection
- Port security operations
- Illegal crossing prevention
- Smuggling interdiction
Operational Advantages
Rapid Response 5-15 second engagement time from target identification to neutralization enables quick reaction to fast-moving threats before they can complete hostile actions.
High Precision Sub-15 microradian tracking accuracy ensures laser energy is precisely directed at the target, maximizing effectiveness while minimizing collateral risks.
Extended Range 600m maximum tracking capability with 100-400m engagement range provides layered defense with sufficient stand-off distance from protected assets.
Autonomous Operation 95% recognition accuracy with intelligent target classification reduces operator workload and enables effective 24/7 autonomous operation.
All-Weather Capability IP65 protection and wide operating temperature range (-30°C to +60°C) ensure reliable performance in diverse environmental conditions.
Cost-Effective Engagement Directed energy provides unlimited magazine depth with minimal per-engagement cost compared to kinetic interceptors.
Silent Operation Laser engagement produces no acoustic signature, enabling covert operations and preventing adversary awareness of defensive capabilities.
Multi-Target Capability Rapid beam re-targeting and continuous 120+ second emission time enable sequential engagement of multiple threats.
Minimal Collateral Risk Precision laser engagement eliminates ballistic debris and provides controlled effects compared to explosive interceptors.
Deployment Configurations
Vehicle-Mounted Configuration
- Tactical mobility for convoy protection
- Rapid relocation capability
- Mobile perimeter defense
- Temporary event security
- Emergency response deployment
Fixed Installation
- Permanent facility protection
- Building rooftop mounting
- Integrated facility security system
- 24/7 autonomous operation
- Strategic site defense
Tripod-Portable Configuration
- Rapid deployment scenarios
- Temporary security operations
- Special event protection
- Field exercise support
- Training and demonstration
System Integration
Networked Operations
- Compatible with existing security systems
- Gigabit Ethernet data interface
- Remote monitoring and control capability
- Multi-sensor data fusion
- Command and control integration
Radar Integration
- Accepts external radar cuing
- Provides target data to C2 systems
- Network-centric warfare compatible
- Sensor-to-shooter automation
- Layered defense coordination
Safety & Compliance
Laser Safety
- Controlled engagement zones
- Operator safety interlocks
- Emergency shutdown capability
- Personnel detection systems
- Safe operational procedures
Regulatory Compliance
- International laser safety standards
- Military equipment certifications
- Export control compliance
- Electromagnetic compatibility
- Environmental protection standards
Training & Support
Operator Training
- System operation procedures
- Target identification and classification
- Engagement decision protocols
- Maintenance procedures
- Safety and emergency protocols
Technical Support
- Installation and commissioning
- System configuration
- Performance optimization
- Preventive maintenance
- Remote diagnostics
Why Choose HEWEI 3KW Laser Anti-drone System?
Proven Technology HEWEI’s 17 years of security equipment experience and 80+ patents ensure reliable, battle-tested technology.
Intelligent Automation 95% target recognition accuracy with AI-based classification significantly reduces operator workload and false engagement risk.
Complete Solution Integrated laser effector and intelligent radar detection provide complete detect-to-engage capability in single system.
Flexible Deployment Vehicle-mounted, fixed installation, and portable configurations adapt to diverse operational requirements.
Cost-Effective Protection Directed energy engagement provides unlimited magazine depth with minimal per-shot cost and maintenance requirements.
Global Support HEWEI’s presence in 20+ countries ensures international support capability and service availability.
