Sharpshooter 5010-SC3A Single Channel Full Body Security Scanner

The Sharpshooter 5010-SC3A Full Body Security Scanning System is a modern and efficient alternative to strip searching and invasive patting. It utilizes proven technology to replace traditional manual procedure and can scan human body both externally and internally for any hidden weapons and contraband items like drugs, gemstones, knives etc. (If you’re interested in Double Channel Scanner capable of scanning both the people and their luggage then please click here: Sharpshooter Double Channel Scanner)

Sharpshooter 5010-SC3A Display Interface

Unique Highlights

  • Integrated Lead Shield, X-ray Leakage: <0.17µSv/h
  • Scan time: <3s


  • Scans human body both internally and externally.
  • Complete screening from head to toe.
  • Wide detection range: metallic & non-metallic objects like drugs, guns, knives, explosives, electronic devices, gemstones etc.

Technical Specifications

  • Dose per inspection: 0.05-0.2µSv, suitable for general use.
  • X-ray leakage: <0.17 µSv/h, at any point 50cm from any external surface of the system.
  • Scan time: < 3s, superior to industry standard of 15s.
  • High throughput: up to 1300 pph.
  • Wire detectability: 40AWG (0.0787mm,) superior to industry standard of 0.127rnrn.
  • Inspection mode: Open-type continuous cyclic detection (independent R&D of single-channel cyclic motion device patented.)
  • Simultaneous image acquisition and recording.
  • Image manipulation: zoom, super enhancement, detail enhancement, B/W reverse, filter, pseudo color, brightness/contrast.
  • 24-inch LCD display with high resolution of 1920×1200
  • Complaint with ANSI/HPS N43.17-2009, and IEC62463 Edition 1.0 2010-06

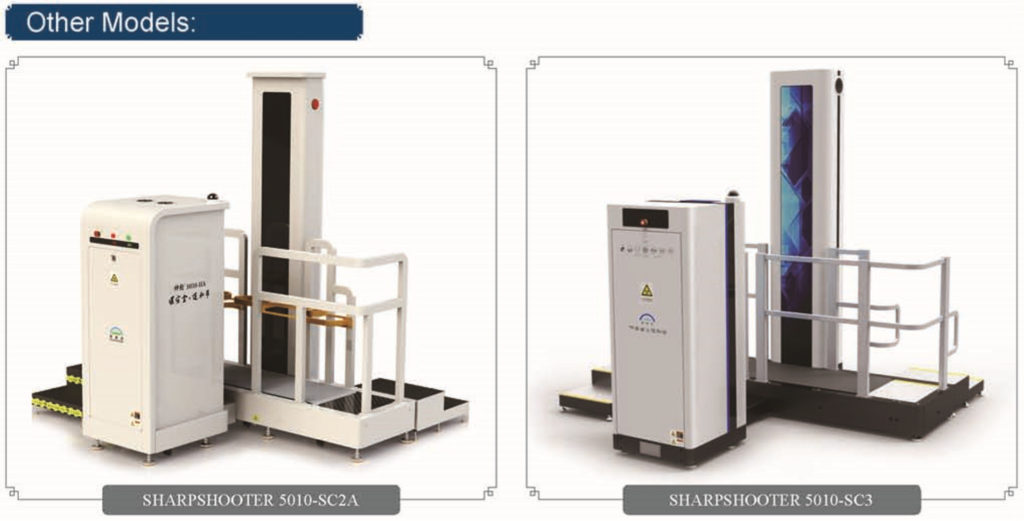

Sharpshooter 5010-SC2A/SC3

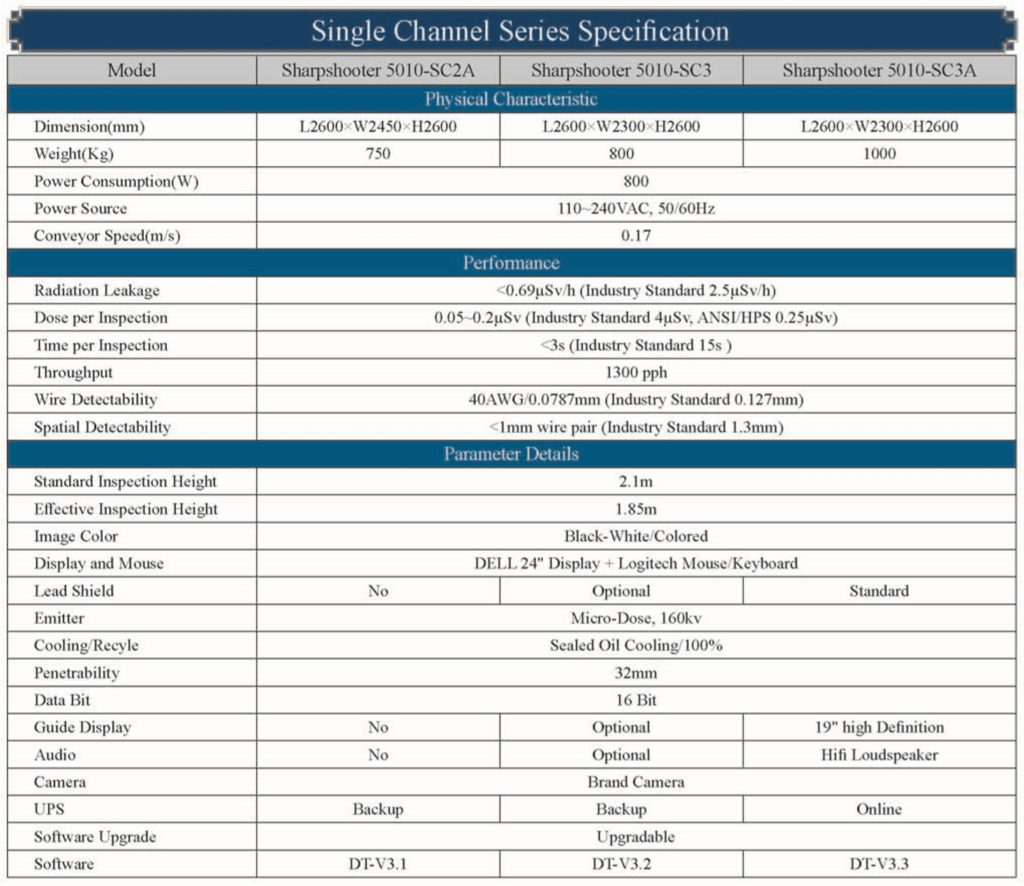

Sharpshooter 5010 Single Channel Series Specification

Sharpshooter Full Body Security Scanner is One of World’s Top Class Solution to Public Safety Concerns – Providing Security at an Affordable Cost

Call Capital Services System now at +92 51 2110 525 or send us an email at: to know more about Sharpshooter Full Body Scanners.
